Specification
| Material | Stainless Steel 316, Stainless Steel 304 |
|---|---|
| Application | Food and Beverage, Chemistry, Pharmacy, Semiconductor, Oil and gas, Paint resin and coating |
| Type | Mesh Filter Cartridges |
| Diameter | 63mm (2,5'') |
| Cartridge lenght | 254mm (10”), 508mm (20”), 762mm (30”), 1016mm (40”) |
| Micron | 1, 3, 5, 10, 15, 25, 50, 100, 200 , 300, 400, 500, 600, 700, 800, 900, 1000 |
| Adapters | Doe / Double open end, Code 3 / Single open end with Flat closed and external 222 o-rings, Code 7 / Single open end with Fin end, 2 locking tabs and external 226 O-ring, Code 8 / Single open end with fin end and external 222 O-rings |
| Seals | Ethylene Propylene, Viton, Nitrile, FEP Encapsulate Viton, FEP Encapsulate Silicon, Buna |

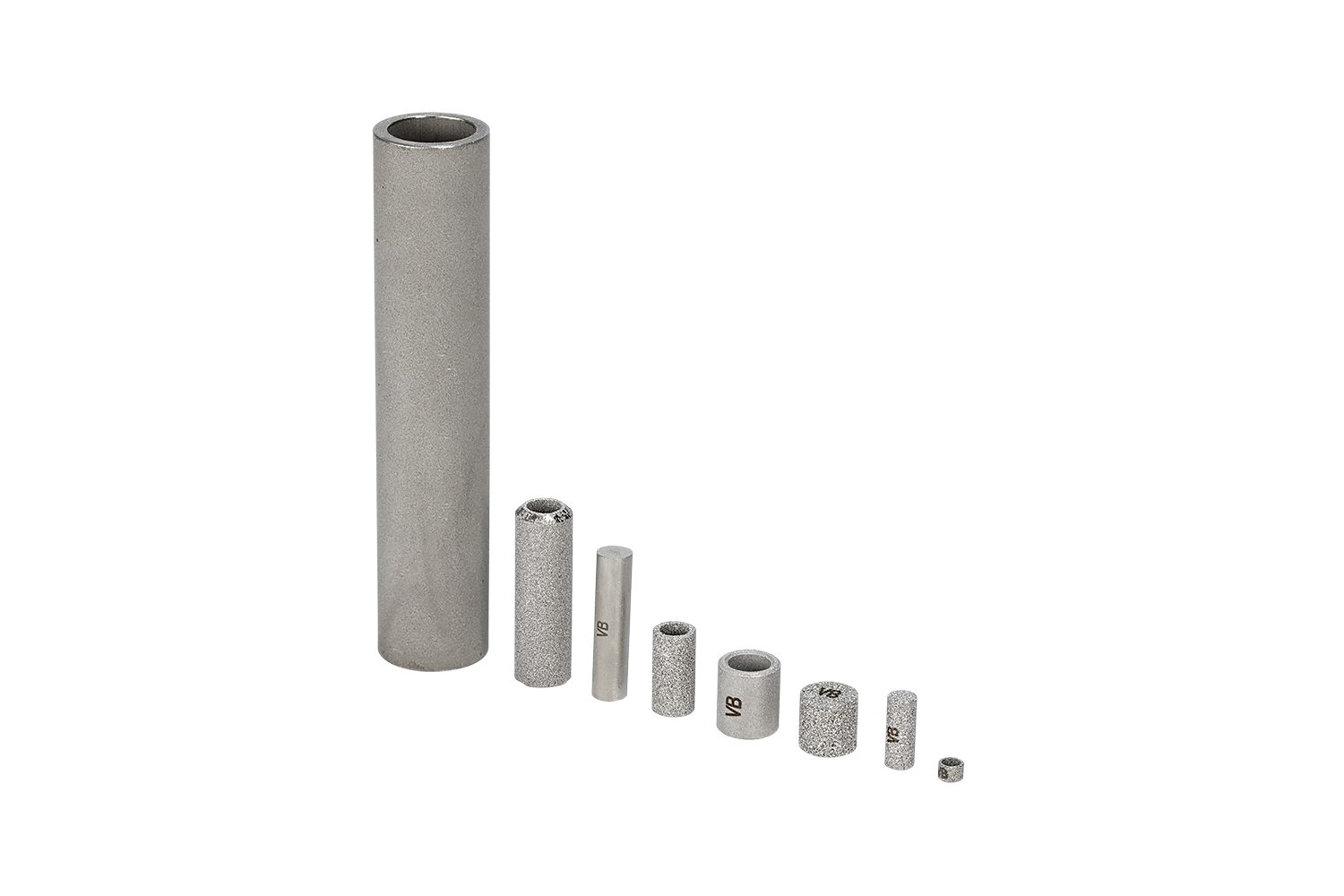

Borsometal Sintered Metal Mesh
Filtercartridge made of sintered metal, ideally suited for high temperature application. Filter cartridge are available in a wide variety of materials, length and micronratings.
Click here to contact us.
Description
Sintered mesh filter
The BorsoMetal Sintered Metal stainless steel Mesh is a filter cartridge that consists of multiple layers that are diffusion-bonded together.
BorsoMetal sintered Mesh Filter cartridges have a high permeability, and are very strong, also they are available in Lo Pass and Hi Pass media,
The BorsoMetal Fiber stainless steel sintered filter cartridges are available in the following materials 316L, 304L stainless steel, Inconel® 601, Hastelloy® X, NiCrMo Alloy 59 and FeCrAl Alloy on request.
The BorsoMetal fiber filter cartridges are available in a cylindrical Filter Cartridge with a filtration area of 0.55ft2 (0.05m2) per 10" length and as a pleated Filter Cartridge with a filtration area of 1.40ft2 (0.13m2).
