Specification
| Material | Polypropylene |
|---|---|
| Application | Water, Food and Beverage, Chemistry, Oil and gas, Automotive, Paint resin and coating |
| Type | Pleated Filter Cartridges |
| Diameter | 63mm (2,5'') |
| Cartridge lenght | 254mm (10”), 508mm (20”), 762mm (30”), 1016mm (40”) |
| Micron | 0.5, 0.8, 1, 2, 3, 5, 7, 10, 20, 30, 40, 50, 60, 90, 105 |
| Adapters | Doe / Double open end, Code 3 / Single open end with Flat closed and external 222 o-rings, Code 7 / Single open end with Fin end, 2 locking tabs and external 226 O-ring, Code 8 / Single open end with fin end and external 222 O-rings |
| Seals | Ethylene Propylene, Viton, Nitrile, FEP Encapsulate Viton, FEP Encapsulate Silicon |

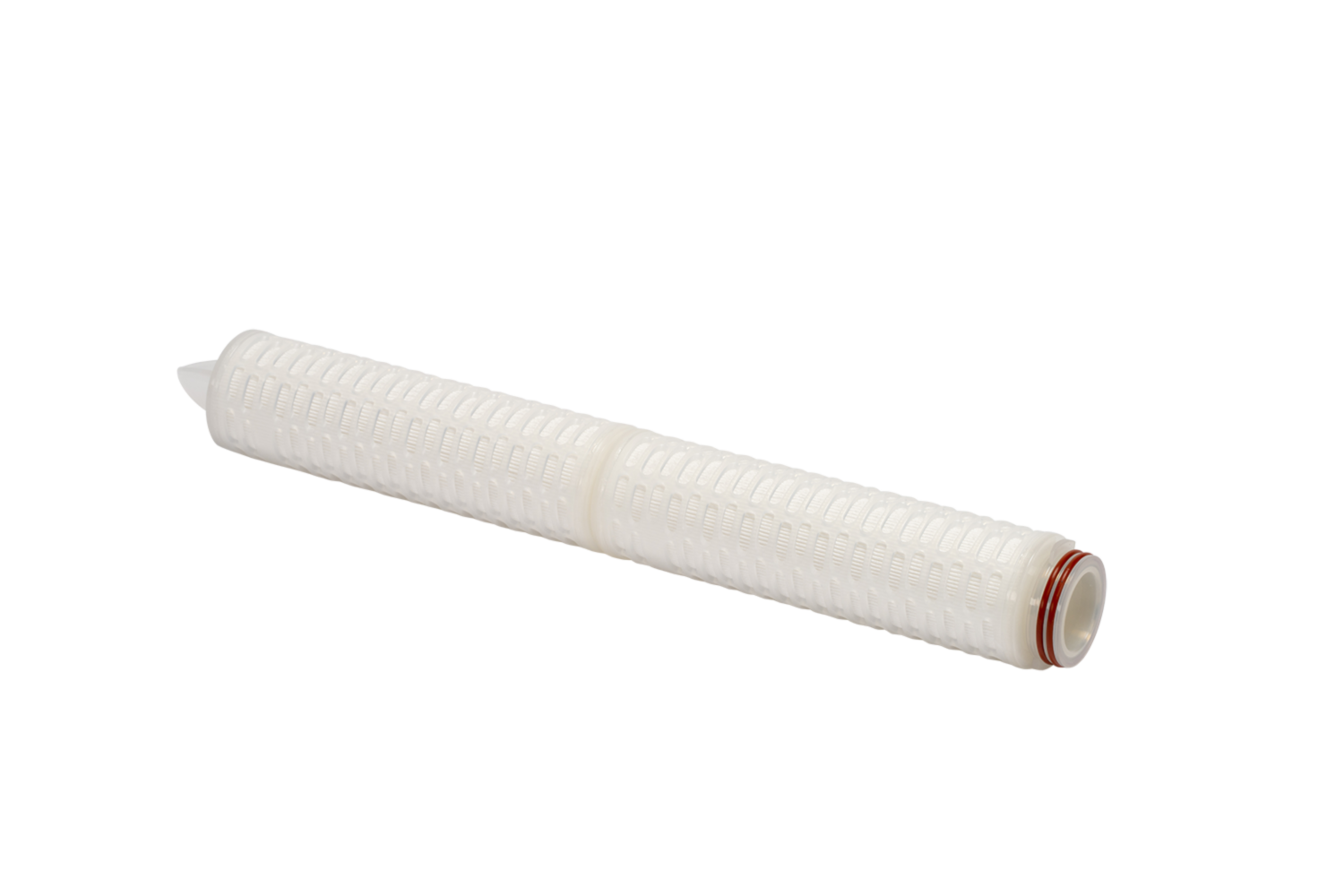

BorsoPleat-P
A pleated filter made of polypropylene. The filter has an absolute ratio (Beta 5000) and are available in different micronratings and lengths.
Click here to contact us.
Description
The BorsoPleat-P Filter Cartridges are suitable for the removal of unwanted particles and as pre-filtration to protect membrane filter cartridges. The unique design of the BorsoPleat-P cartridges contributes to lower operating costs. The BorsoPleat-P filter cartridges are suitable for applications ranging from bioburden reduction to clarification of a wide range of process fluids and end products.
Materials of Manufacture
Filter media: Polypropylene
Inner core: Polypropylene
End fittings: Polypropylene
Outer Support: Polypropylene
Support ring: Stainless steel
